Double Cabinet¶

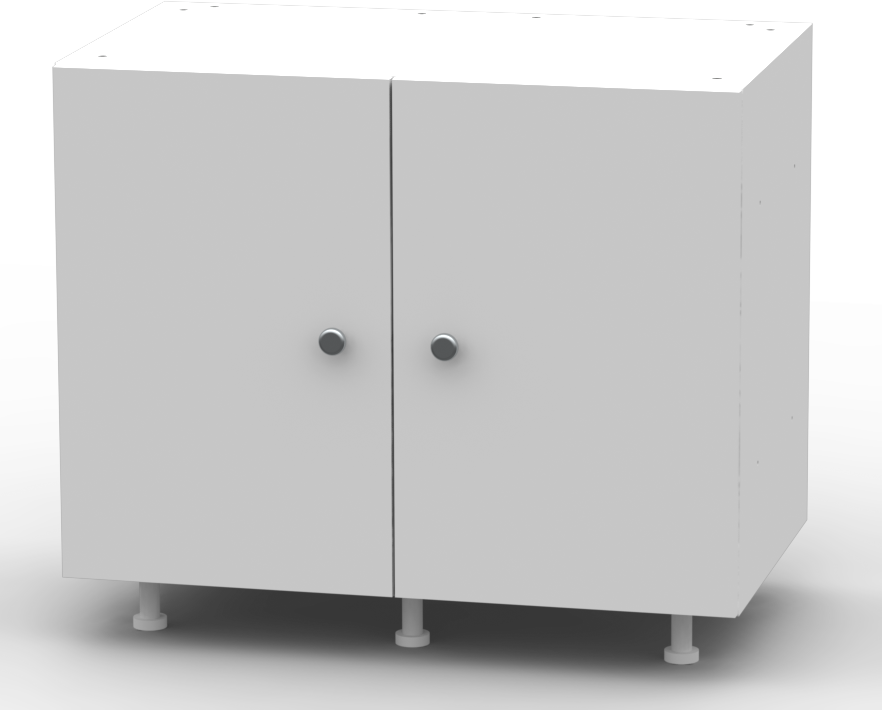

The double cabinet is a double module for the OpenDeskLab. It is comprised of the five melamine boards that form the frame and the two melamine doors.
The hinges are standardized and all the holes can be predrilled in the CNC mill of the melamine supplier.
Important
- Tools Needed:
- Pozidriv Screwdriver
- Electric Screwdriver for the six plastic legs
Assembly Procedure¶
The assembly procedure is very simple, first you assemble the two side panels using the Cam Bolts and the Wooden Dowel Pins, and then you mount the Hinge Mounting Plates on the left and the right side panels.
Then you create the door assemblies by mounting the Concealed Hinges with the provided screws (3.5mm x 16mm) and lastly you screw in the Knobs.
After you have assembled both sides and the door assemblies you can proceed to the next step. Attach the three Melamine parts on one of the side panels and then carefully align the second side panel on the assembly. After that, screw in the Cam Locks to secure the subassembly. Lie the subassembly down and screw in the six plastic legs on the bottom of the cabinet. Lastly, attach the already assembled doors on the cabinet by attaching the Concealed Hinges on their respective Hinge Mounting Plates and screw them in.
Bill of Materials¶
Double Cabinet - Bill of Materials Item Quantity Price/Pcs Total Price Cam Lock 15mm x 12.5mm 24 0.148€ 3.552€ Cam Bolt 6mm x 45.5mm 12 0.880€ 10.560€ Wooden Dowel Pin 8mm x 30mm 18 0.029€ 0.522€ Concealed Hinge (9mm Overlay) 4 1.690€ 6.760€ Hinge Mounting Plate 4 0.980€ 3.920€ Plastic Adjustable Legs 100mm 6 0.750€ 4.500€ M6 x 40 Connecting Screws 4 0.753€ 3.012€ Melamine 18mm 3.228 6.718€/m2 21.691€ Door Knob 2 1.080€ 2.160€ Total Cost 56.677€
