Desk Side¶
Depending on the Desk Back configuration, the side panels also differentiate accordingly, with two different versions, a tall and a short one.
Important
- Tools Needed:
- Pozidriv Screwdriver

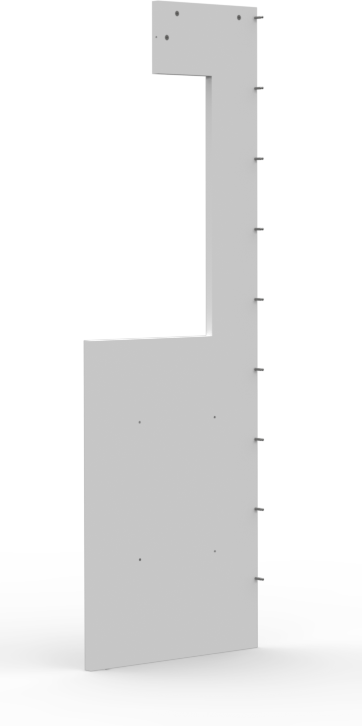

Tall side¶
Assembly Procedure¶
The assembly procedure is fairly simple, just screw in the Cam Bolts and insert the Dowel Pins on the melamine board. The Cam Lock can also be inserted without however locking them in place.
Drawings¶
Drawings are provided for the left melamine side, the right side is changed accordingly.
Bill of Materials¶
Tall Desk Side - Bill of Materials (For both side panels) Item Quantity Price/Pcs Total Price Cam Lock 15mm x 12.5mm 6 0.148€ 0.888€ Cam Bolt 6mm x 45.5mm 18 0.880€ 15.840€ M6 x 40 Connecting Screws 4 0.753€ 3.012€ Melamine 25mm 1.530 8.958€/m2 13.710€ Total Cost 33.450€

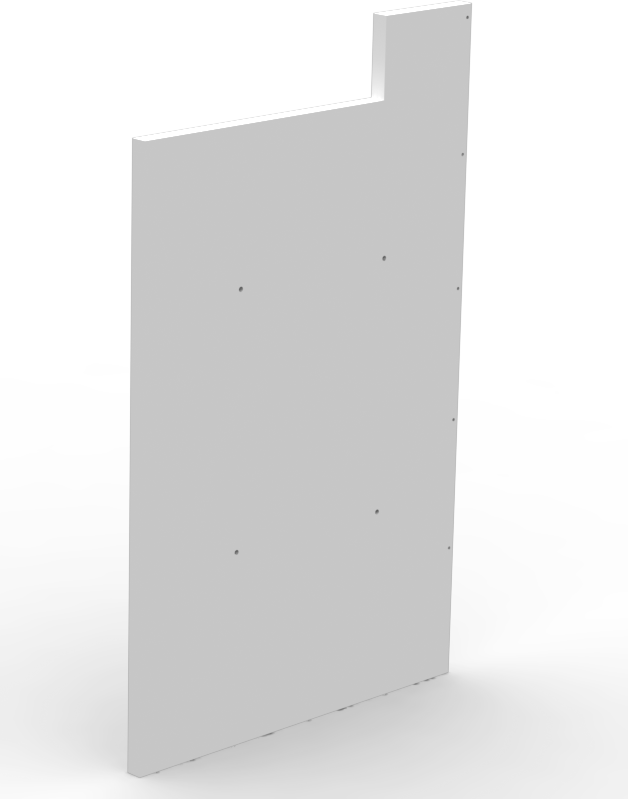

Short side¶
Assembly Procedure¶
The short side module is also very simple to assemble, fewer components are needed than the taller version.
Drawings¶
Drawings are provided for the left melamine side, the right side is changed accordingly.
Bill of Materials¶
Short Desk Side - Bill of Materials (For both side panels) Item Quantity Price/Pcs Total Price Cam Bolt 6mm x 45.5mm 10 0.880€ 8.800€ M6 x 40 Connecting Screws 4 0.753€ 3.012€ Melamine 25mm 1.167 8.958€/m2 10.454€ Total Cost 22.266€
